Starting from the top and working down you can see the following: Time 9:57am, duration of flight is 4:05, next waypoint is TUL, ground speed is 135 knots, heading is 187 as shown on the EFIS arc, altitude is 4500msl, red circles show the controlled airspace (ceilings and floors are shown), roads, lakes, airports and distance to them are shown.  The green course line is highly visible.  Time to destination is 6:46, the bearing to TUL is 187 and the remaining distance to TUL is 15.3nm.  The tool bar on the bottom include icons for user waypoints, airports, navaids, day/night mode, EFIS arc/HSI mode and the direct to icon.





Screen shows similar information as the above screen.  By tapping any of the airports shown on screen will bring up data on that airport.

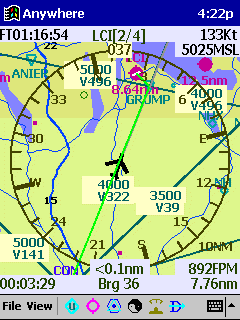

This screen shows the HIS rose instead of the EFIS arc.  Also the option of showing Victor airways has been turned on.  The Compaq's iPAQ screen makes flying a sheer pleasure.  The 4,000 color TFT screen active matrix display is fully readable in bright sunlight.  The view can be toggle between a daylight and nighttime view.

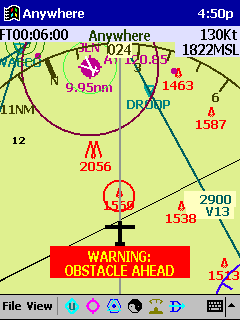

The obstacle warning is on to warn of a potential obstacle hazard.  By tapping on the obstacle you will see the height of the obstacle AGL and altitude of the top of the obstacle.

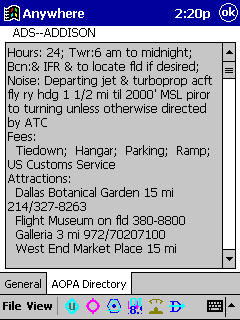

The Anywhere Map software includes the AOPA Directory.  Know what is available at the airport before you arrive.
